Distance Sensors Penang, Malaysia



Highlights

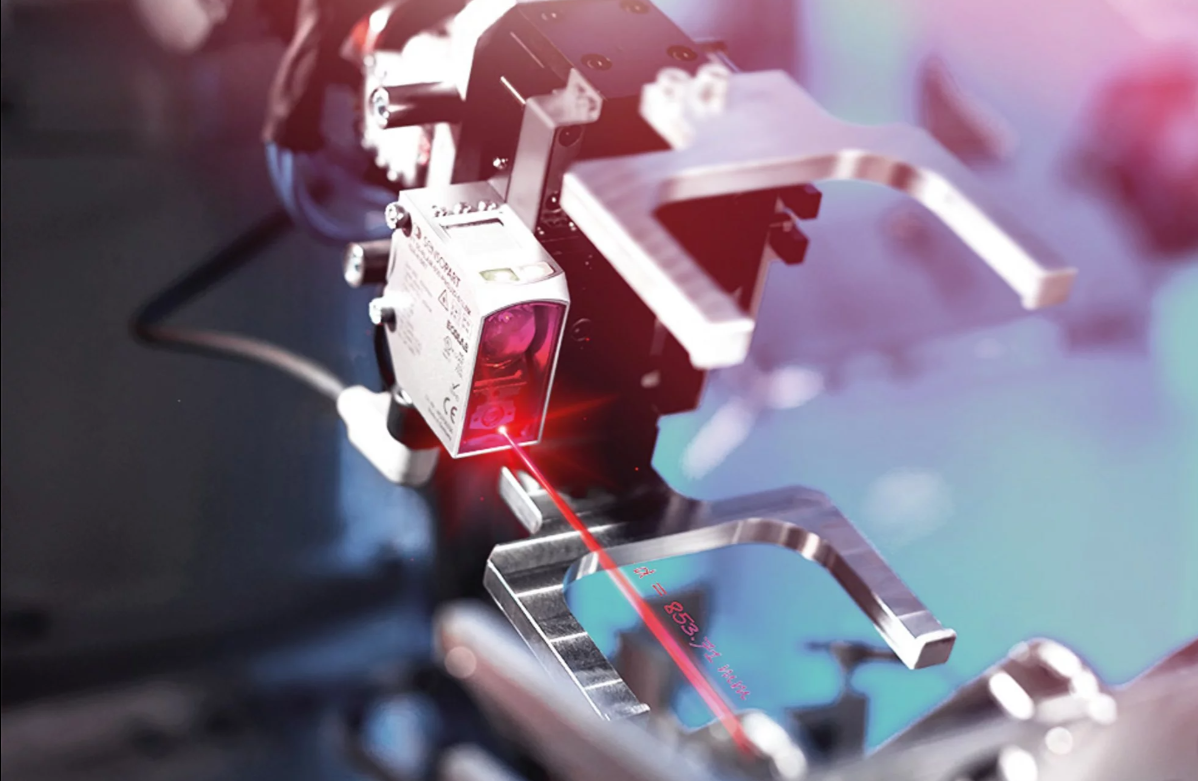

  • Fast and accurate measurement, precise positioning and detection of a wide range of materials
  • IO-Link sensors can be operated in IO-Link mode or standard I/O mode
  • Our distance sensors cover a wide range of applications:
    • Triangulation sensors for near-field applications
    • Time-of-flight sensors for long working distances

Distance sensors for all operating ranges

Triangulation for close range

The measurement principle of optical triangulation is suitable for the precise determination of distances at close range. With the help of special receiver optics and a position-sensitive detector (e.g. a photodiode line), the sensor can determine the object distance regardless of its reflectivity (see illustration below). The color and surface properties (e.g. highly reflective) thus have practically no effect on measurement accuracy.

Time-of-flight for long distances

SensoPart uses time-of-flight technology to measure longer distances (up to 250 m). The sensor emits pulsed laser light that is reflected by the target object. The distance to the object is determined by the time taken between emission and reception of the light. The use of pulsed light provides reliable background suppression and very high immunity to ambient light.

TRIANGULATION SENSORS FOR NEAR-FIELD APPLICATIONS (UP TO 1000 MM)

FT 10-RLA


10 mm

70 mm
0 mm500 mm1000 mm
FT 25-R(L)A


20 mm

200 mm
0 mm500 mm1000 mm
FT 50-RLA


30 mm

300 mm
0 mm500 mm1000 mm
FT 55-RL(2)AM


120 mm

1000 mm
0 mm500 mm1000 mm



TIME-OF-FLIGHT SENSORS FOR LONG WORKING DISTANCES (UP TO 70 M)

FT 55-RLAP


0.1 m

5 m
0 m10 m20 m30 m40 m50 m60 m70 m
FR 55-RLAP


0.3 m

70 m
0 m10 m20 m30 m40 m50 m60 m70 m
